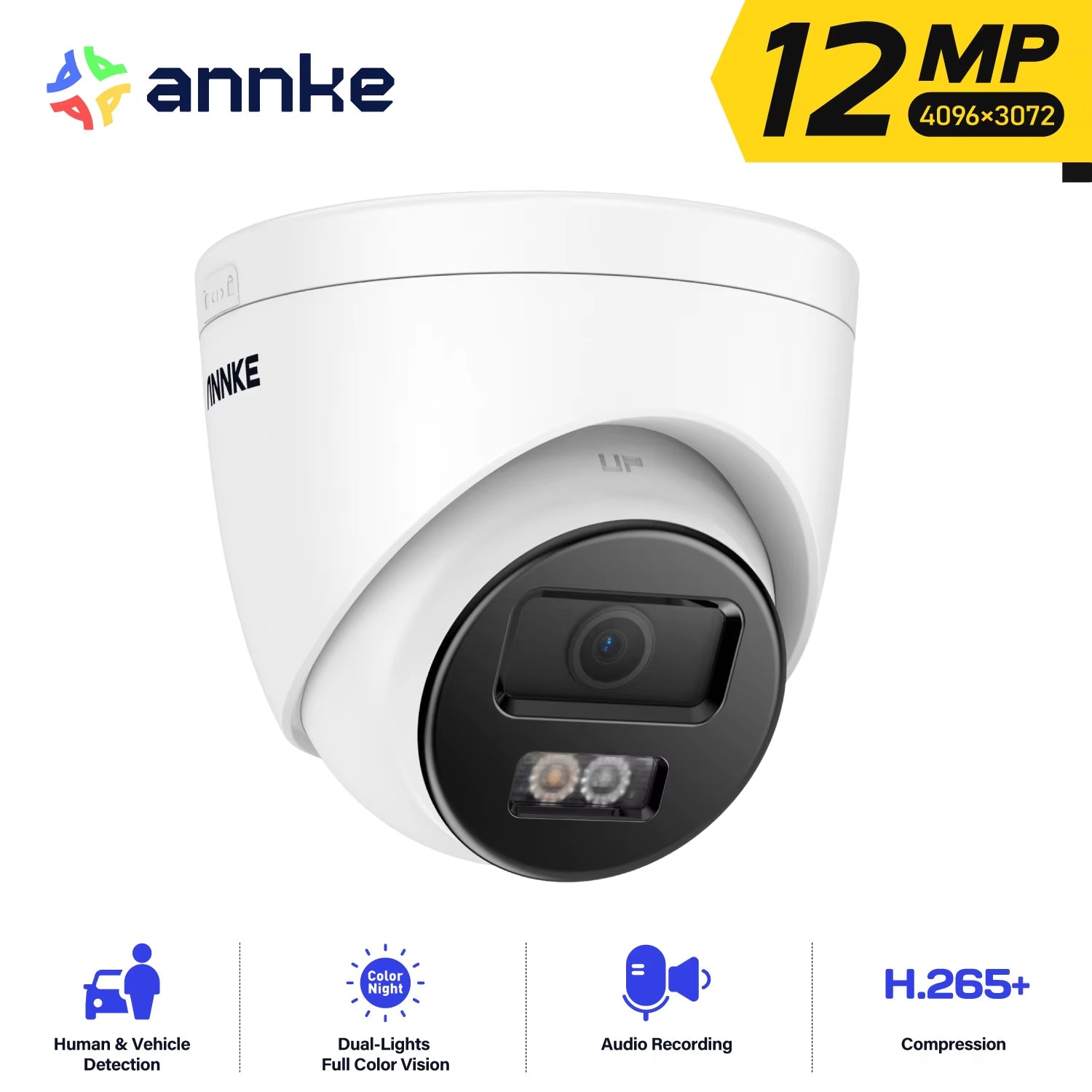

Annke 12MP HD IP Security Camera with PoE, Light and Audio Features, Human and Vehicle Detection, H.265+ Compression, 6K Video Surveillance, 512GB Storage Capacity

IP Camera

Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Max resolution

4096*3072(12MP)

Main Stream

50 Hz: 10 fps@4096*3072, 12.5 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720)
60 Hz: 10 fps@4096*3072, 15 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720)

Substream

50 Hz: 12.5 fps (1280*720, 640*480, 640*360)
60 Hz: 15 fps (1280*720, 640*480, 640*360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG

Video Bitrate

32 Kbps - 16 Mbps

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Input

Built-in Microphone, record with audio

Lens

2.8 mm

Min. Illumination

Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

Angle of View

Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°

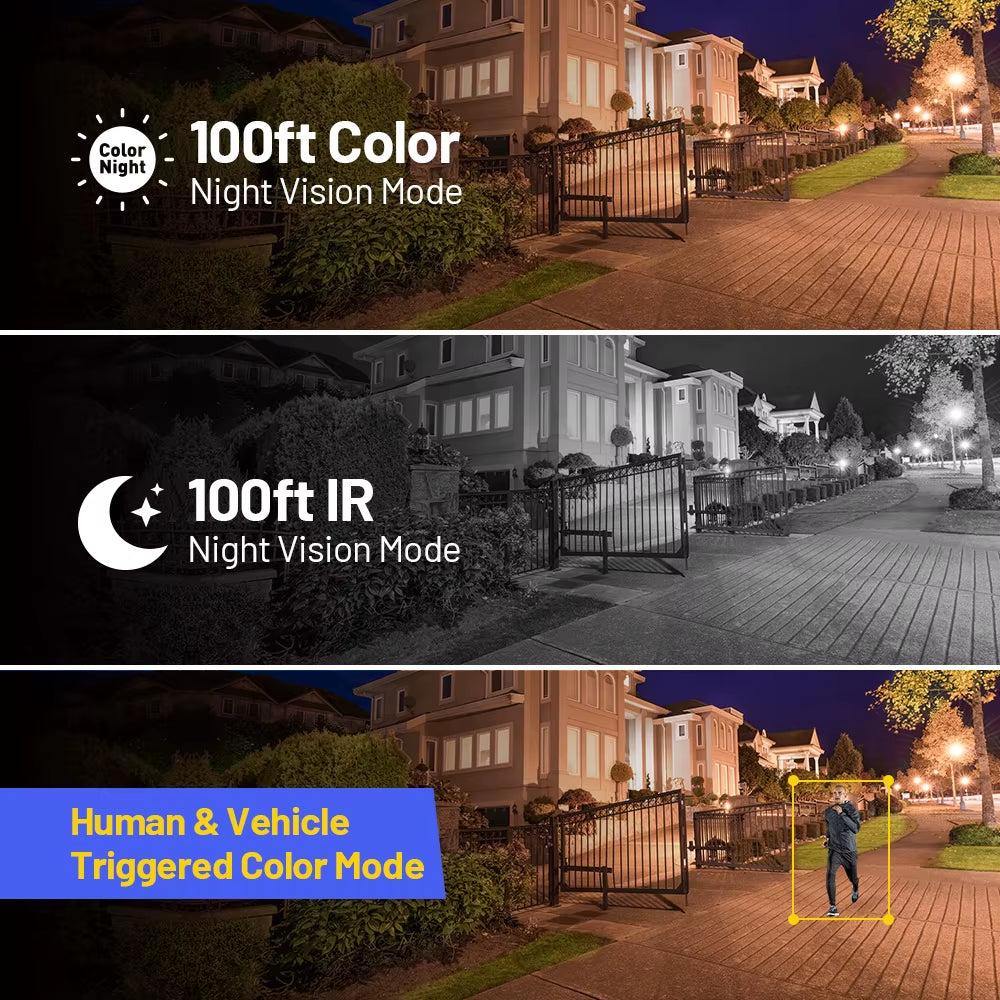

Supplement Light Type

Smart Dual-Light, IR, White Light

Supplement Light Range

Up to 30 m

Motion detection 2.0

Supoort, include Human & Vehicle detection

Image Enhancement

BLC, HLC, 3D DNR

Wide Dynamic Range

120 dB WDR

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP

API

Open Network Video Interface Version 19.12 (Profile S, Profile T, Profile G)

Region of Interest (ROI)

1 fixed region for main stream

Privacy Mask

4 programmable polygon privacy masks

General Function

Rotate mode, mirror, password protection, remote access

Ethernet

1 RJ45 10 M/100 M self-adaptive Ethernet port

General

Housing

Metal & Plastic

Color

White & Black

Storage

Built-in microSD/SDHC/SDXC Slot, up to 512 GB

Hardware Reset

Yes

Operating Power

DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W

Operating Temperature

-22 °F – 140 °F/-30 °C – 60 °C

Indoor/Outdoor Use

Indoor/Outdoor

Interface Protection

IP67

Dimension (L X W X H)

170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")

Weight

0.6 lb./285 g
