AN870 Smart Multimeter Digital Profesional 19999 Counts AC Voltage Tester Current NCV Capacitance Resistance Ohm Test Tool
AN870 Smart Multimeter Digital Profesional 19999 Counts AC Voltage Tester Current NCV Capacitance Resistance Ohm Test Tool
Couldn't load pickup availability
Fast Shipping
On All Items
Money Back
Guarantee
Customer Support
Excellent Service
100% Satisfaction
Satisfaction Guaranteed
AN870 Smart Multimeter Digital Profesional 19999 Counts AC Voltage Tester Current NCV Capacitance Resistance Ohm Test Tool
Specification
| dc voltage | 600mV/6V/60V/600V/1000V |
| origin | Mainland China |
| operating mode | Manual range |
| hign-concerned chemical | None |
| diy supplies | Electrical |
| ac voltage | 600mV/6V/60V/600V/1000V |
| display type | Digital Display |
| ac current | 600uA/6000uA/60mA/600mA/10A |
| measuring resistance range | 600/6k /60k /600k /6M /60M |
| certification | CE |
| dc current | 600uA/6000uA/60mA/600mA/10A |
| measuring capacitance range | 10nF/100nF/1uF/10uF/100uF/1000uF/10000uF |
| model | AN870 |
| is smart device | No |
| measuring inductance range | no |
| dimensions | 26 x 17 x 6 cm |
| operating temperature | 0 - 40 ℃ |
| display(lcd) | 19999 counts |
| ranging | Auto/Manual |
| meterial | ABS |
| update rate | 3Time/Second |
| ture rms | yes |
| ncv | yes |
| back light | yes |
| date hold | yes |
| relative measurement | yes |
| max/min | yes |
| low battery alect | yes |
| auto power off | yes |
| diode | yes |
| continuity | yes |
| color | Red/Green |
| choice | yes |
15.0 inches x 23.0 inches x 6.0 inches. Weight: 0.587 kg
Item Description
Smart Multimeter Digital Profesional 19999 Counts AC Voltage Tester Current NCV Capacitance Resistance Ohm Test Tool
Feature:
A. Introduction
This product is a battery-powered, true-rms, auto-ranging digital multimeter with a 19999 LCD display and a backlight.
B. Specification
Brand Name |
ANENG |
Model |
AN870 |
Display(LCD) |
19999counts |
Ranging |
Auto/Manual |
Meterial |
ABS |
Update Rate |
3Time/Second |
Ture RMS |
yes |
Back Light |
yes |
Date Hold |
yes |
Relative Measurement |
yes |
MAX/MIN |
yes |
Low Battery Alect |
yes |
Auto Power Off |
yes |
Diode |
yes |
Continuity |
yes |
NCV |
yes |
Function |
Range |
Accuracy |
DC Voltage |
19.999mV/199.99mV/1.9999V/19.999V/199.99V/1000V |
±(0.05％+ 3) |
AC Voltage |
19.999mV/199.99mV/1.9999V/19.999V/199.99V/750V |
±(0.3％+ 3) |
DC Current |
1.9999A /19.999A / 19.999mA /199.99mA /99.99μA /1999.9μA |
±(0.5%+3) |
AC Current |
1.9999A /19.999A / 19.999mA /199.99mA /99.99μA /1999.9μA |
±(0.8%+3) |
Resistance |
199.99Ω |
±(0.5%+3) |
1.9999kΩ/19.999kΩ/199.99kΩ |
±(0.2%+3) |
|
1.9999MΩ/19.999MΩ |
±(1.0%+3) |
|
199.99MΩ |
±(5.0%+5) |
|
Capacitance |
9.999nF |
±(5.0%+20) |
99.99nF/999.9nF/9.999uF/99.99uF/999.9uF |
±(2.0%+5) |
|
9.999mF |
±(5.0%+5) |
|
Frequency |
99.99Hz/ 999.9Hz/ 9.999kHz/ 99.99kHz/ 999.9kHz/ 9.999MHz |
±(1.0%+2) |
Duty Cycle |
1%~99% |
±(1.0%+2) |

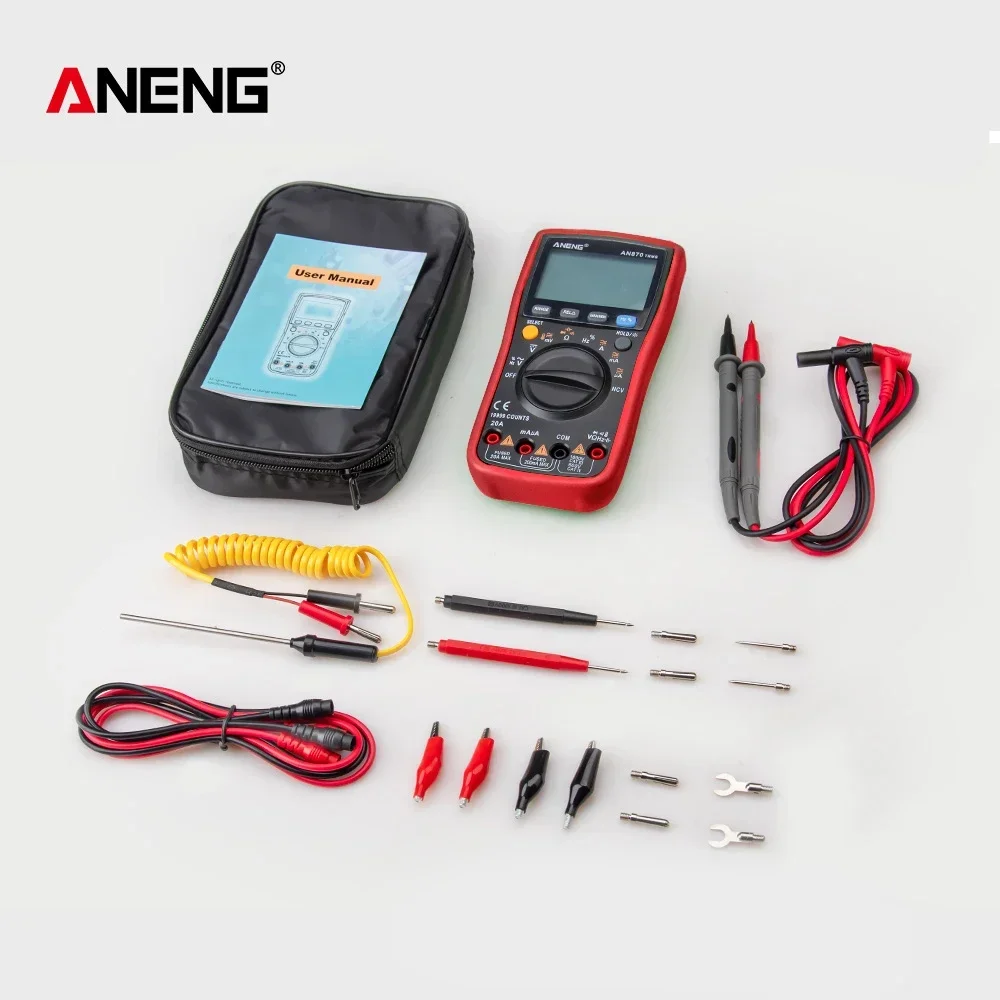

Packaging:(Not including battery)
as the picture showed
Warning:
1. Do NOT exceed the "maximum value" indicated in the Specification;
2. Do NOT input voltage at the Current Mode, the Resistance Mode, the Diode Mode, the Continuity Mode, or the Temperature Mode;
3. Do NOT use the product when the batteries or the battery cover is not placed properly;
4. Turn off the product and remove the test leads from the test points before changing batteries or fuses.
